SMH's range of air filtration units, also known as air scrubbers or negative pressure units (NPUs)provides mobile filtered air extraction to control environments where airborne contaminants are a potential risk to human health, such as in demolition and remediation work. They are designed to create negative pressure within a portable decontamination unit facility or working enclosure. All SMH NPUs comply withBS EN 8520-2:2009.
Filtering contaminated air is critical to controlling the spread of hazardous substances. SMHs dust and air filtration Negative Pressure Units (NPUs) are designed to tackle a wide range of contaminants.

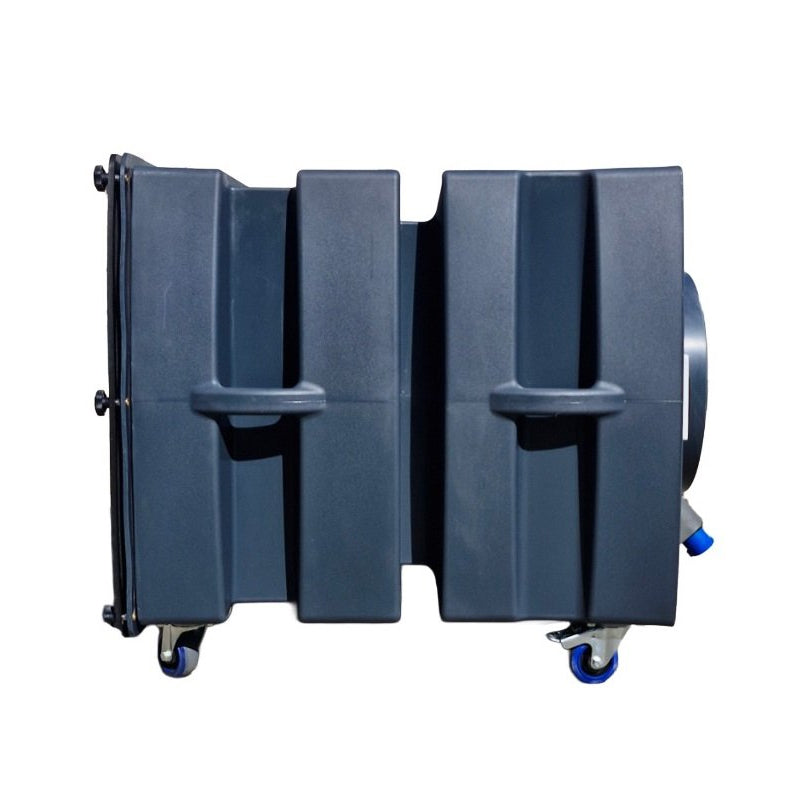

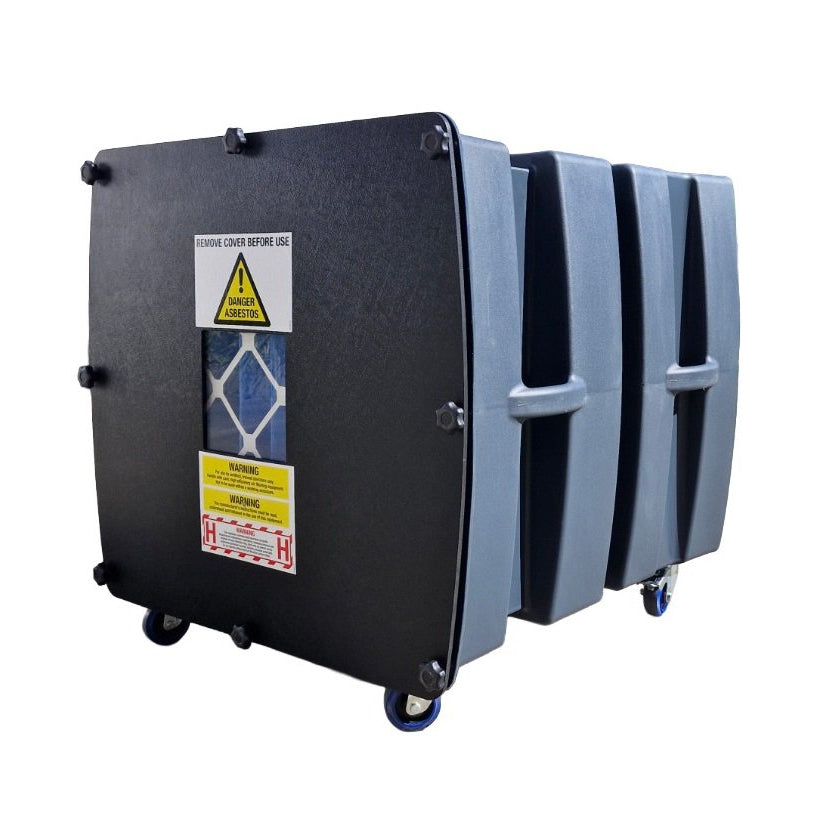

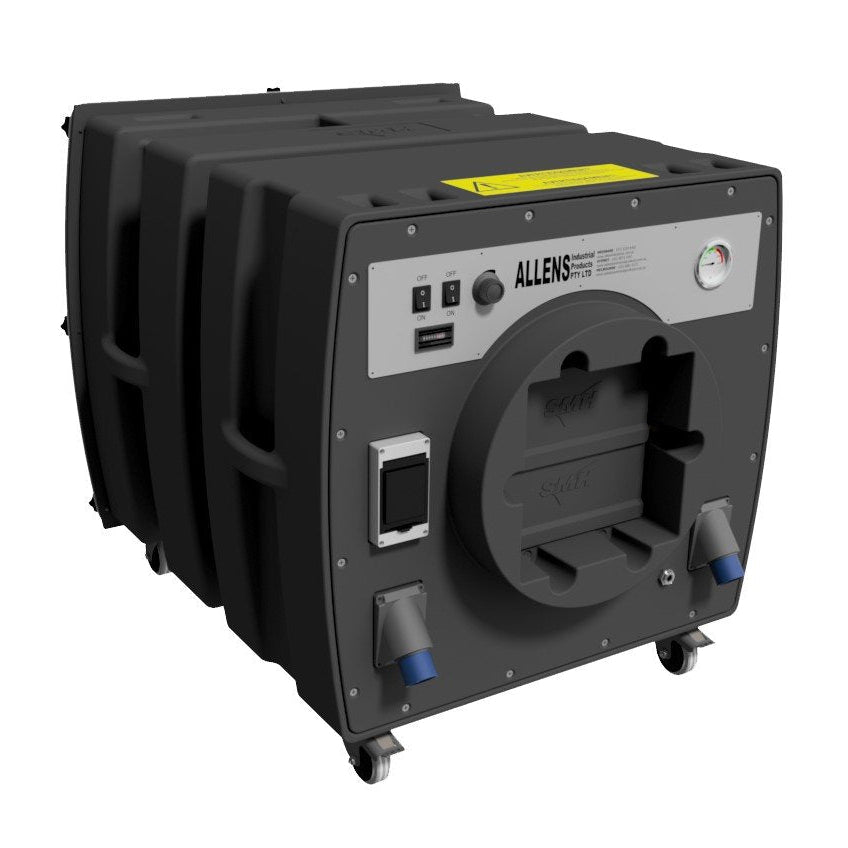

The NPU 5000+ has a totally redesigned body. Weld-free, it is easy to clean and the polyethylene case is lightweight yet sturdy enough to withstand daily site use.
Its powerful motors provide a huge nominal airflow of5200m³/hrfor what is still a relatively compact size and lightweight. With particle filtration of99.995% at 0.3µm, the H14 HEPA filter cleans contaminated air of potentially harmful particles such as asbestos.
SMH5000 Technical Specifications
Attribute
Details
Case
Moulded polyethylene, weld-free
Airflow
5200m³/hr (average)
Noise
Less than 86 dBA at 1m
Electrical
2 x High-capacity motors (Single phase 220/240V 50Hz)
Prefilter
1 x prefilter (596 x 596 x 98mm)
HEPA
1 x H14 HEPA filter, 99.995% efficiency @ 0.3 microns (610 x 610 x 292mm)
